Fliegl launches new vacuum tank line

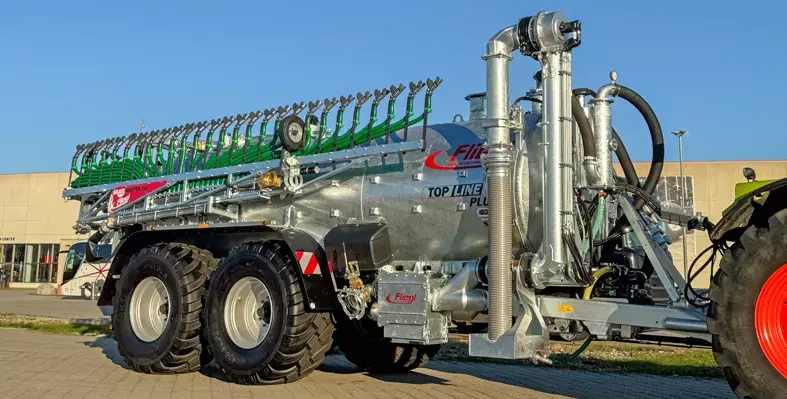

Fliegl presents the new 'Top Line Plus' vacuum tankline, a vehicle specially developed to meet the requirements of modern operations and sets new standards in efficiency and user-friendliness

The Top Line Plus is a further development of the tried-and-tested VFW MAXX Line Plus series and comes with numerous innovative features. The Maxx-Line Plus vacuum barrels are characterised by their solid construction. Particularly practical are the standard 8 inch blind flanges under the barrel, so it is easy to switch from a 6 inch suction slide to 8 inch. By connecting the suction slide valve located under the barrel, it is possible to prime with a turbo filler, left/right or via the suction nozzle.



When it comes to the new Top Line Plus, one of the outstanding features includes the optional ‘Elefant’ suction arm, which is positioned on the right in the direction of travel. This double-steered suction arm primarily stands for a comfortable filling process, combined with proportional operation via joystick.



The ‘Elefant’ can be equipped with a powerful turbo filler to ensure top suction performance. The flexibility of the turbo filler is also demonstrated by the option of placing it either on the slewing ring or in the centre under the tank. This allows farmers to optimise their filling processes to suit their individual needs. Suction depths of over 4 m are no problem, thanks to a telescopic extension at the end of the second boom. In addition, the “Elefant” can also be used for emptying transport tanks, which increases flexibility.



The optionalPro Cut cutting device from AgrarPro ensures perfect separation of foreign bodies and shredding of the fibres in the slurry during the filling process. The rotating disc blades ensure the best cutting effect. An optional application accelerator is positioned at the top of the tank thanks to the sophisticated design, which avoids conflicts with the four-point hydraulics. This keeps the attachment close to the rear of the tank, which has a favourable effect on the drawbar load of the tractor.



The vacuum tank ‘VFW Top Line Plus’ is available in three versions with a capacity of 16,000l, 18,000 l or 20,000l in order to cater for different farm sizes and requirements. In addition, the customer can choose between other practical equipment options such as the flow rate control Fliegl Flow Control or electronic forced steering.
